The EDI File Editor

Top  Previous  Next

Under the menu item 'View' you have the option 'EDI Editor' plus you have the EDI icon on the toolbar to invoke the EDI Editor.



EDI files are often hard to read, especially if they have no carriage returns and line feeds to put each segment on a line of its own.



This option is only enabled when you have Opened an EDI File

When you click this menu option, the following screen will appear

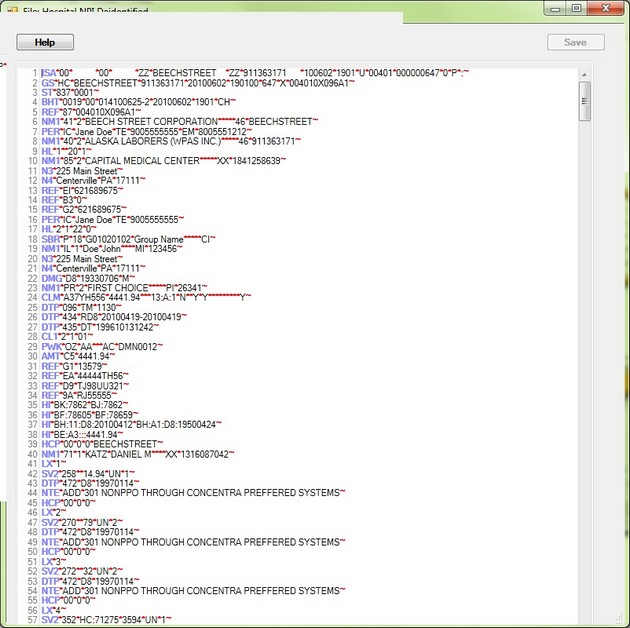

Editor

The EDI Editor



This Editor will replace all Element separators with a star '*', all sub element separators with a colon ':' and all segment separators with a tilde '~' even if the original file uses different delimiters. As long as you don't save, there will be no changes to the file.



When you right-click anywhere in the text, a floating menu will appear with typical test edit options such as cut, copy and paste,

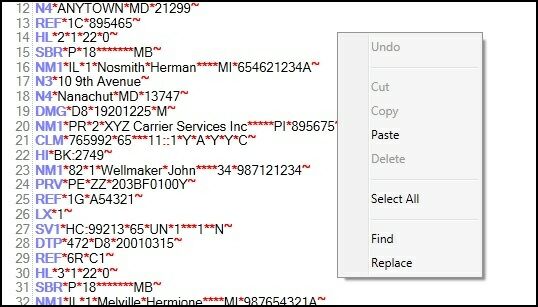

EditorMenu

The floating menu of the EDI editor. right-click anywhere in the text to make it appear



Ctrl-F brings up the text search utility

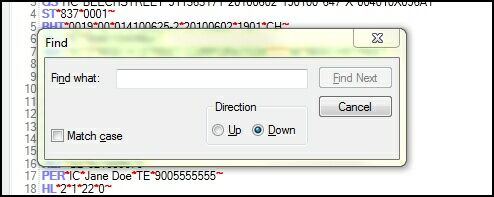

Find

The search utility



Ctrl-H will bring up the replace utility

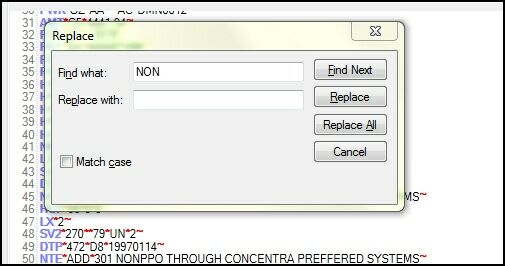

Replace

The Find and Replace utility



If you make changes to the file, the 'Save' button becomes enabled and you can save any changes. The HIPAA Claim Master will further work with those changed files, you don't have to open the file again.



Changing EDI files can be a tricky undertaking. You should be experienced in the format of the 837 and understand that an 837 claim file could be a legal document that should not be altered without the consent of the originator.
