Using the EDI Viewer and Editor

<< Click to Display Table of Contents >>

Navigation:  Configuring the Application >

Using the EDI Viewer and Editor

Previous pageReturn to chapter overviewNext page

EDI files are often hard to read, especially if they have no carriage returns and line feeds to put each segment on a line of its own.

The EDI Editor available in the HIPAA Premium Payment Master replaces all element separators with a star "*", all sub element separators with a colon ":" and all segment separators with a tilde "~" even if the original file uses different delimiters.



Tip: Changing EDI files can be a tricky undertaking. You should be experienced in the format of the 820 and understand that an 820 payment file could be a legal document that should not be altered without the consent of the originator.

To Open EDI Editor

To access the EDI Editor, select the "EDI Editor" option under "View" menu item.


editor
The "EDI Editor" menu

Note: This option is only enabled when you have opened an EDI File.

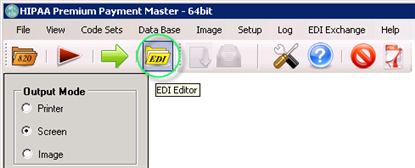

Alternatively, you can click on the "EDI" icon on the toolbar to invoke the EDI Editor.

edi-editor-button
The "EDI Editor" button

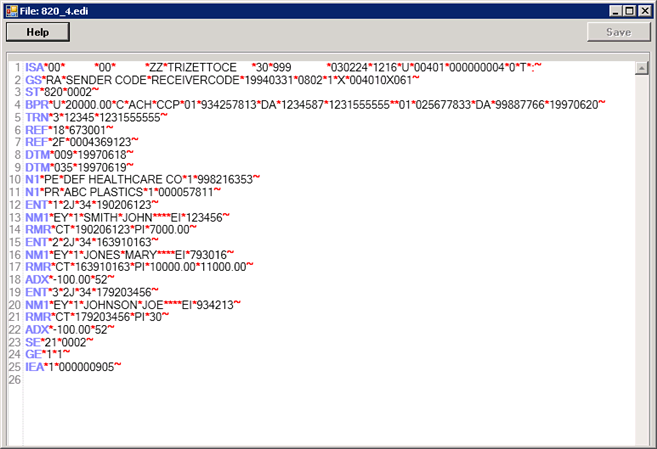

The following screen will appear:

editor2
The EDI Editor window



To Cut, Copy, Paste

When you right-click anywhere in the text, a context menu will appear with typical test edit options such as cut, copy and paste.

context
The context menu

To Find and Replace

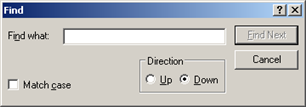

The "Find" and "Replace" utilities work as in a common text editor. To use them, right-click somewhere in the document and then from the displayed context menu select the "Find" or "Replace" command. Alternatively, you can press Ctrl F simultaneously on your keyboard to bring the text search utility.

edieditor4
The "Find" pop-up

Pressing Ctrl H simultaneously will bring up the "Replace" utility.

edieditor5
The "Replace" popup

To Save the Changes

As long as you don't save, there will be no changes to the file.

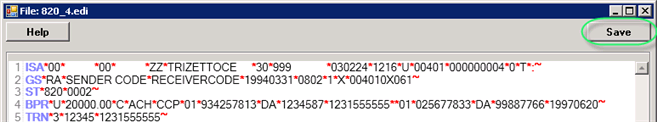

If you make changes to the file, the "Save" button becomes enabled and you can save any changes. The HIPAA Premium Payment Master will further work with those changed files, so you don't have to open the file again.

Notice: Changing EDI files can be a tricky undertaking. You should be experienced in the format of the 820 and understand that an 820 payment file could be a legal document that should not be altered without the consent of the originator.

save
The "Save" button
