Configuring Image Index

Top  Previous  Next

Document Management Systems with image libraries often require some basic information together with the file path to the image. The HIPAA Claim Payment Master can create such an index through ODBC into any database, independent of the database used for file downloads.

Select Image arrow Image Index File Options in the main menu to access the "Image Index Configuration" window.

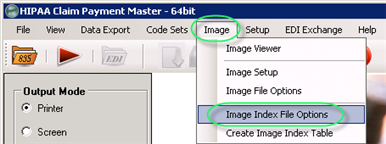

image-index5
The "Image Index File Options" menu

You can define which fields to include and configure your database settings. Here are all options:

Create Image Index

Check this option to create the image index. Select one of the following options to specify the format:

ASCII Text File — The image Index File is an ASCII text file that can be created together with claim images. It will contain tab-delimited fields and have one line per claim.

In the "Text File with Image Files Path" field specify the output directory for image index. Click "Browse" to select the destination place.

Note: The image index ASCII file currently works only when you save individual images for each claim.

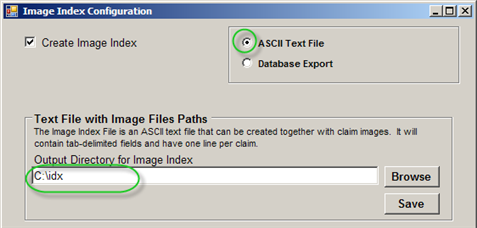

index-config
The "ASCII Text File" option

Then click "Save."

Database Export — Select this option to save the image index through ODBC into any database, independent of the database used for file downloads. The database setup is similar to the database setup for the export of claim payment data. Specify the following database connection parameters:
Database Type
Database Server Name or DSN
Database
Username
Password
Image Index Table Name

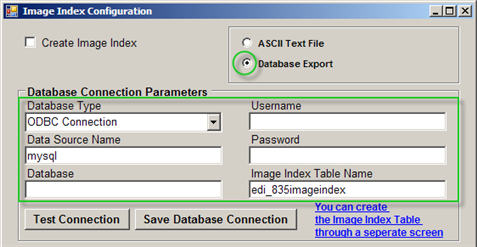

mysql-config
The "Database Export" option

Once all database connection parameters have been specified, click "Test Connection" to verify the connection.

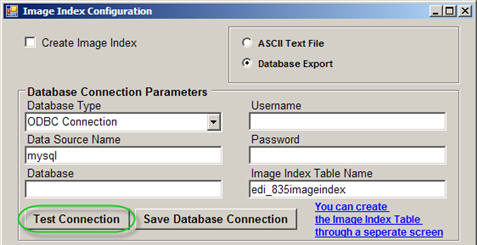

mysql-config2
The "Test Connection" button

The configuration is correct if you receive a message like this. Click "OK."

mysql-config1
The success message

Then click "Save Database Connection."

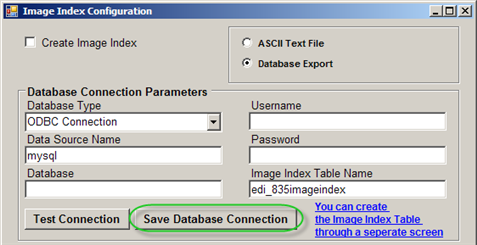

mysql-config3
The "Save Database Connection" button

To create the image index table, click on the "You can create the Image Index Table through a separate screen." See Creating the Image Index Table.



Fields to be included in Image Index File

You can select the fields that get imported into the image index by selecting the check-boxes in front of the field names.

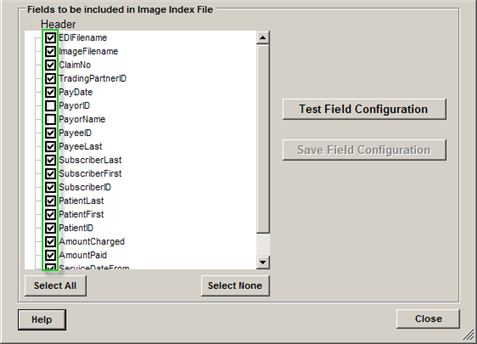

fields2
The fields to be included in Image Index File

Tip: As with the other field selectors, you can change the field names by clicking on them. This is helpful if you have an existing database that you want to access.
fields4
Changing the field names

For Database export, you can test the fields configuration by clicking on the "Test Field Configuration" button.

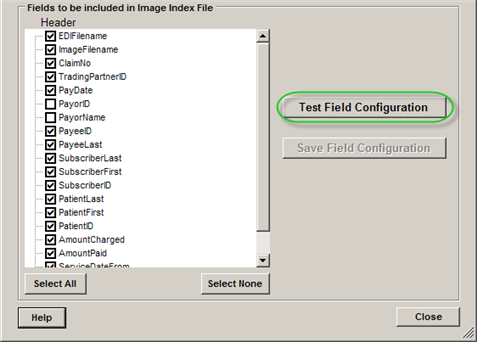

fields
The "Test Field Configuration" button

You will receive a message like this. Click "OK."

fields1
The success message

When ready, click on the "Save Field Configuration" button.

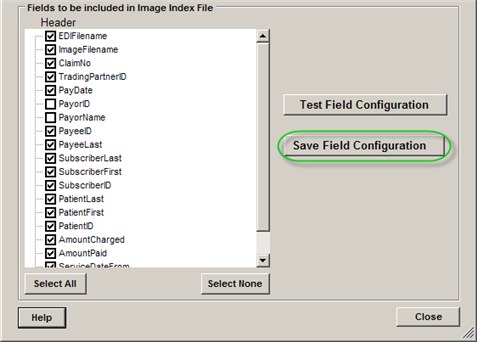

fields3
The "Save Field Configuration" button

Once all image index options have been defined and saved, click "Close."

close
The "Close" button
