Creating Image Files from EDI

Top  Previous  Next

The HIPAA Claim Payment Master displays the EDI document in a page that makes it easy to read the 835 transactions. You can create image files containing the data that you see in Screen mode. The following formats are supported:

TIFF
PDF

You can create image files manually or automatically using the command line arguments and Windows Scheduler. Read more in:

Running the Application via Scheduler
Using Command Line Arguments (CLI)

Before creating image files, make sure all settings are defined correctly. Read more in:

Doing Image Setup
Adjusting Image Options
Configuring Image Index
Creating the Image Index Table

Follow the instructions below to create an image file from EDI file.

Notice: The image file will be created based on the pre-defined settings. Read more in Doing Image Setup, Adjusting Image Options, Configuring Image Index.

1.Open an EDI file or directory containing the EDI files in the HIPAA Claim Payment Master. Read more in Processing a Payment Advice File, Opening a Folder Containing EDI Files.

open2
The "Open document" button

open-dir
The "Open Directory" menu
2.Select the "Image File" option in the "Output Mode" block.

image-file
The "Image File" option
3.Click on the "Run" button.

run
The "Run" buttons
4.The "Processing Results" window displays the report. You can find the resulting TIFF or PDF files in the specified folder.

result-files

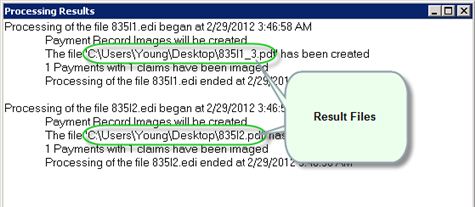

The "Processing Results" window
